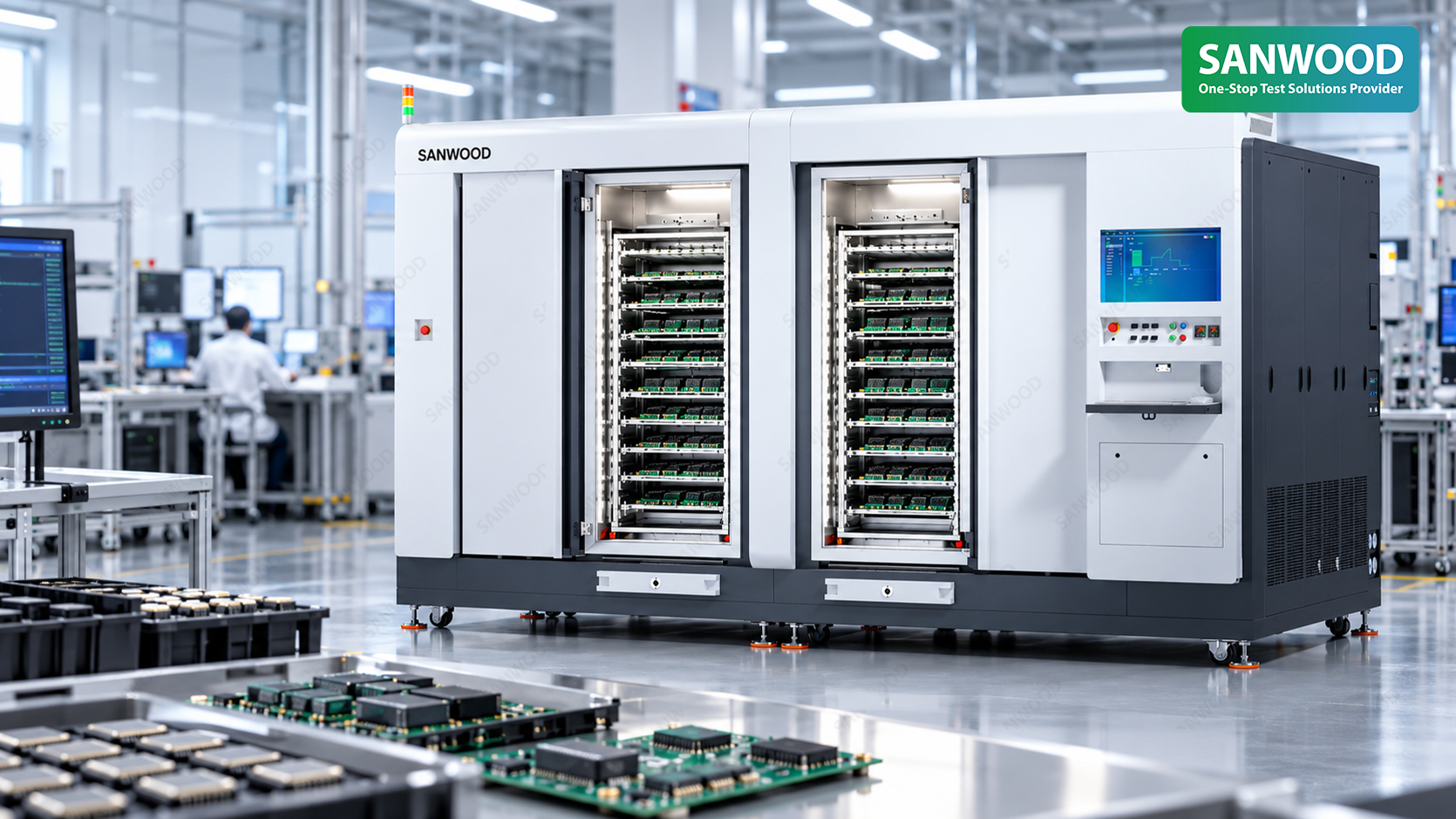

Burn-In Chamber Sizing for BIB Heat Load and Airflow

Start with the populated BIB arrangement

A board outline does not describe the complete installed load. The layout should include racks, sockets, connectors, cables and any required temperature sensors, together with access for loading and connection.

Identify:

• Board dimensions, orientation and spacing.

• Device under test (DUT), quantity and distribution.

• Groups of devices that operate simultaneously.

• BIB revision and operating-program version.

Use this information to clarify the quoted burn-in board capacity. Available board positions describe physical accommodation. Simultaneous operation with populated boards also depends on the operating load and required thermal and electrical conditions.

A capacity statement should identify both the board arrangement and the operating conditions it covers.

Separate operating heat load from thermal mass

The same boards can create different internal heat loads when the active device population or operating program changes. Board count alone does not capture that difference.

Build the BIB heat load inventory around the intended operating states. Include DUT dissipation and other relevant heat sources inside the workspace, such as board electronics. Keep external equipment separate.

Record the basis of each value: measurement, documented estimate or electrical rating. These provide different information. If a board-level value already includes its DUTs, do not add the same contribution again.

During burn-in, device dissipation can raise air temperature as air passes through the chamber. This makes the location and distribution of the operating load relevant alongside its total dissipation.

Keep board and fixture mass as a separate input. Mass matters when assessing temperature transitions; operating dissipation matters when assessing the heat released during a run. The system's electrical input rating establishes neither DUT dissipation nor its supported internal heat load.

Examine airflow with the boards installed

For burn-in chamber airflow, the useful question is how circulating air reaches the loaded boards and returns through the chamber.

Board spacing, socket bodies, fixtures and cable bundles can restrict or redirect those paths. Compare these features with the arrangement used in the supporting assessment, especially where a proposed layout changes the passages between boards or obstructs supply and return areas.

Total airflow and local air velocity are different quantities. A chamber-wide airflow figure therefore cannot, by itself, establish conditions at every board position. Delivered flow also depends on the fan characteristic and resistance in the circulation path.

Ask which engineering analysis or evaluation records cover the proposed arrangement. Further assessment may be appropriate where the load differs; a detailed pressure-drop calculation is not automatically necessary for every inquiry.

Circulation and heat removal also serve different roles. Moving air transfers heat between the load and the thermal system. The system must manage that heat, while the installation must accommodate its rejection.

Define the temperature result the capacity must support

Load dimensions, mass and heat output are relevant to chamber performance assessment. Connect the temperature requirement to the intended boards, fixtures and active devices.

Specify the measurement reference first: chamber air, device case or junction temperature. An air-temperature record alone does not establish case or junction temperature.

Then define:

For recovery, name the event, starting condition, load and acceptance criterion. Loading the chamber and changing device operation are different events.

Supporting records should identify the board layout, device population, program and measurement conditions. An empty-chamber result does not establish performance with the planned BIB load. Where the proposed setup differs from an evaluated configuration, review the affected requirements and any additional verification needed.

Compare the capacity basis before confirming the configuration

Use the following checklist to compare your planned batch with the supplier's assessment. It is a discussion aid, not a universal sizing formula or acceptance standard.

For facility planning, separate electrical connection requirements, internal test dissipation and heat rejection. If the system uses refrigeration, confirm the condenser arrangement: air-cooled and water-cooled configurations reject heat through different paths.  Check applicable connections, delivery access and maintenance clearance against the installation documents.

Record each unresolved item with its owner and next action. A change in DUT, program or layout does not automatically require a complete retest; determine whether existing evidence covers the change.

Questions About Selecting a SANWOOD BIB Burn-In System

Can I use my existing BIBs with a SANWOOD burn-in system?

Submit your BIB drawings, populated dimensions, connector details and operating-dissipation information for compatibility review. Ask SANWOOD to assess the proposed arrangement for board fit, airflow clearance and required interfaces, and identify any fixture or connection changes. Physical fit alone does not establish compatibility under operating conditions.

Should I request a chamber or a complete BIB burn-in system?

Tell SANWOOD which boards, power supplies, stimulus and measurement equipment your laboratory already provides. List the additional functions required, and ask the quotation to identify the chamber, fixtures, electrical functions, software and recording scope. This defines how the proposed equipment will work with your existing setup.

Discuss your planned batch with SANWOOD

For a BIB Memory Burn-in Test System inquiry, send SANWOOD your DUT description, populated BIB layout, simultaneous operating groups, temperature profile and available dissipation information. Include monitoring needs and facility constraints, and mark any inputs that are still provisional.

If you are comparing system types, explore SANWOOD's Memory Burn-in Test Systems. Ask for a proposal that identifies the capacity basis, supply inclusions and verification scope for your planned batch.
