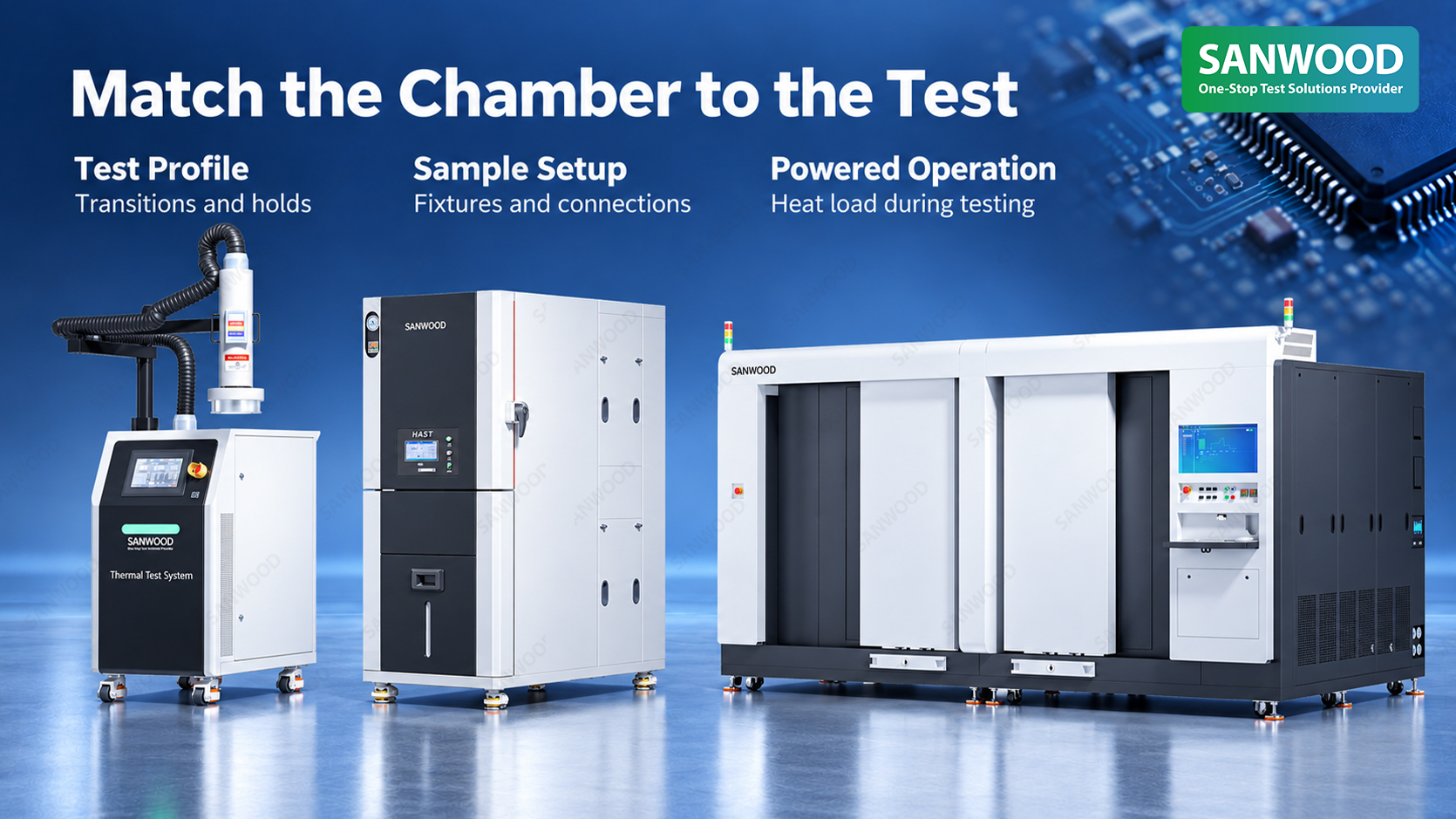

Choosing an environmental chamber for semiconductor testing starts with the test profile and the device under test. Temperature transitions, exposure periods, humidity, pressure and powered operation help determine whether the task calls for whole-chamber exposure, localized temperature forcing, HAST or memory burn-in. The required measurement location then defines what evidence is needed to assess the proposed chamber or system.
Two test requests can share the same hot and cold endpoints while describing different work. One exposes unpowered packages before electrical measurement. Another changes the temperature of a selected chip while its board remains connected to test instruments. A third operates memory devices across populated burn-in boards.
The temperature range is relevant to all three, but it does not identify the complete test arrangement. Selection becomes clearer when the profile shows what is exposed, where temperature is measured and when the devices operate.
The first distinction is how the required stress reaches the sample. Conditioning an entire assembly, directing a thermal stream at one component and exposing packages to pressurized moisture are different test arrangements.
| Requirement in the test | Chamber or system to consider | Detail that determines suitability |
| Temperature holds and programmed transitions | High/low temperature chamber | Transition time, exposure duration and sample load |
| Repeated cycling with a specified temperature-change rate | Temperature cycling or rapid temperature change chamber | Rate definition, temperature interval and measurement location |
| Temperature and humidity exposure at atmospheric pressure | Temperature humidity chamber | Required temperature–humidity combinations and sequence |
| Specified transfer or switching between hot and cold environments | Thermal shock chamber | Test medium, transfer arrangement and recovery requirements |
| Localized temperature exposure of a selected component | Thermal Test System | Target area, thermal-head access and DUT measurement point |
| Accelerated moisture exposure under pressure | HAST Test Chamber | Temperature, humidity, pressure and bias requirements |
| Powered memory testing on burn-in boards | BIB Memory Burn-in Test System | Board arrangement, simultaneous heat load and electrical test scope |
These categories are starting points for review. A programmable chamber may perform both holds and cycling, while a specialized system may combine environmental and electrical functions. The proposed configuration still needs to match the actual procedure.
Where the method has not yet been selected, SANWOOD's semiconductor reliability test standards guide explains the distinctions between common environmental and operating-life tests.
A chamber can expose packages, boards or assemblies to a controlled environment. Some semiconductor evaluations instead focus on a selected component while the board remains accessible for electrical connections and measurement.
SANWOOD's Thermal Test System, also described as a temperature forcing system, directs a conditioned air stream at the device under test. For chip-level evaluation on an assembled PCB, this provides a localized thermal-testing approach without placing the entire board inside a chamber. Access around the target component and the thermal-head arrangement become part of the selection.
The measurement reference is particularly important here. Outlet-air temperature, package-surface temperature and junction temperature are different quantities. A stated transition at the air outlet does not establish the same transition at the chip.
When evaluating a Thermal Test System, the inquiry should therefore identify the target component, the area to be exposed and the temperature measurement point required by the procedure. The available space around the device also matters when selecting the thermal head or insulation hood.
Localized temperature forcing should not be assumed to reproduce whole-board exposure. If the procedure requires the complete assembly to experience the environment, that requirement remains part of the chamber selection.
A ramp-rate figure becomes useful when its conditions are visible. The temperature interval, measurement location and load all affect what the number tells the buyer.
An average calculated across a complete transition does not describe the slope at every point. If a procedure requires a controlled rate through a particular interval, the proposal needs to address that interval. Heating and cooling should also be considered separately.
SANWOOD's Rapid-Rate Temperature Change Chambers (ESS) support programmed heating, cooling and constant-temperature stages. Those functions provide a way to enter the sequence; the performance review establishes whether the proposed configuration can follow it with the intended load.
The flat section of the graph needs an equally clear definition. Does the exposure period begin when chamber air reaches the target, when a specified sample sensor enters the allowed band, or after the procedure's stabilization requirement has been met?
For a package mounted on a board, those events may occur at different times. Programmed chamber hold time and required sample exposure time should not be treated as automatically identical.
A useful supporting temperature record identifies the sensor positions and load arrangement. This allows the reader to connect the programmed sequence with the conditions actually measured.
Powered operation belongs on the same timeline as temperature. Boards that switch on only during a hot hold present a different heat-input sequence from boards that remain powered throughout cooling.
For memory burn-in, the loading arrangement adds another dimension. Several populated boards create a different airflow and heat-load requirement from a small number of widely spaced samples.
SANWOOD's BIB Memory Burn-in Test System is a product option for memory testing on burn-in boards. Its board-based arrangement makes slot loading and airflow between boards relevant to the thermal review. The intended board format, populated positions and simultaneous operating load should therefore be considered together with the temperature sequence.
A chamber temperature setting alone does not define a complete memory burn-in test. The devices also need the electrical conditions specified by the test program.
For a BIB Memory Burn-in Test System inquiry, power and bias requirements, test patterns, channel monitoring and failure reporting need a defined scope. The proposal should identify which functions SANWOOD supplies and which remain with the laboratory or an external test system. This connects the thermal arrangement to the actual memory-test task without assuming that every configuration includes the same electrical capabilities.
For chamber-based powered testing, communication interfaces can support integration with laboratory recording systems. SANWOOD's published rapid-change chamber information lists RS232, RS485 and Ethernet options, depending on configuration. The selected interface and available functions should be checked against the intended use; a communication port does not itself provide device power or electrical measurement.
The broader loading and interface questions are covered in SANWOOD's IC lab chamber selection guide.
A temperature range and a relative-humidity range do not establish that every combination is available. The useful requirement is the actual temperature–humidity pair and the stage at which it must be maintained.
Humidity during a stabilized exposure and humidity during a changing-temperature stage are different requests. Both need to be stated clearly when reviewing a temperature humidity chamber.
When the selected method requires accelerated moisture exposure under pressure, SANWOOD's HAST Test Chamber is the relevant product category to evaluate. Its selection involves temperature, humidity and pressure together, rather than extending the setpoints of a conventional atmospheric temperature humidity chamber.
The electrical arrangement depends on whether the method is biased or unbiased. That distinction should be established before the sample connections are specified.
For biased HAST, the bias supply, sample wiring and feedthrough arrangement must suit the proposed test conditions. The HAST Test Chamber configuration and the supporting electrical functions should be reviewed as a complete setup, with their supply boundaries clearly identified. A product designation alone does not establish that every required bias or measurement function is included.
Future programs can also inform the purchase when their conditions are defined. A known second profile can be assessed alongside the current test. An unspecified possibility of adding humidity or another function later should remain an open requirement until the configuration has been reviewed.
Only where the procedure permits the transition time to change. Required sample stabilization and exposure periods still apply. A higher available ramp rate does not justify shortening those stages.
A Thermal Test System can be considered where localized exposure meets the test requirement. Applying a thermal stream to one chip does not reproduce the temperature distribution across an entire board or batch. The required exposure area and measurement location determine which approach is suitable.
A conventional non-pressurized temperature humidity chamber does not reproduce HAST conditions. A HAST Test Chamber is required for the specified pressurized moisture environment, with the appropriate sample and electrical arrangement for the selected method.
The system name alone does not define the electrical scope. Power delivery, bias, test patterns, monitoring and failure reporting should be checked against the proposed BIB Memory Burn-in Test System configuration and the laboratory's responsibilities.
Sample count, board layout, operating sequence and available power information can support an initial discussion. Estimates should be identified, and unresolved heat dissipation should remain an open item rather than being entered as zero. Final performance confirmation needs an agreed load basis.
Send SANWOOD the test specification or profile together with a brief description of the samples. Identify whether the task involves an individual chip, complete boards, packaged devices under moisture stress or populated memory burn-in boards.
For localized testing, include the target area and required temperature measurement point. For HAST, include the temperature, humidity, pressure and bias requirements. For memory burn-in, include the board arrangement, simultaneous operating load and required electrical functions.
With these details, SANWOOD can assess the chamber or system category and discuss the proposed configuration against the actual test sequence.
Already have a profile? Send it to SANWOOD with the information available, identifying any unresolved conditions for the configuration review.
